ANTENTOP- 02- 2003, # 003			Trap in the Main
Table 1 Data for coils of trap design Band, MHz Coil diameter, mm Length of winding, mm Quantity of turns, n Wire diameter, mm/AWG 1.9 20 20 100 0.15/34 3.5 20 20 50 0.3/29 7 25 40 30 1.0/18 10 25 30 15 1.0/18 14 25 25 12 1.0/18 18 25 30 10 1.0/18 21-24 20 15 8 1.0/18 26-30 20 20 8 1.0/18

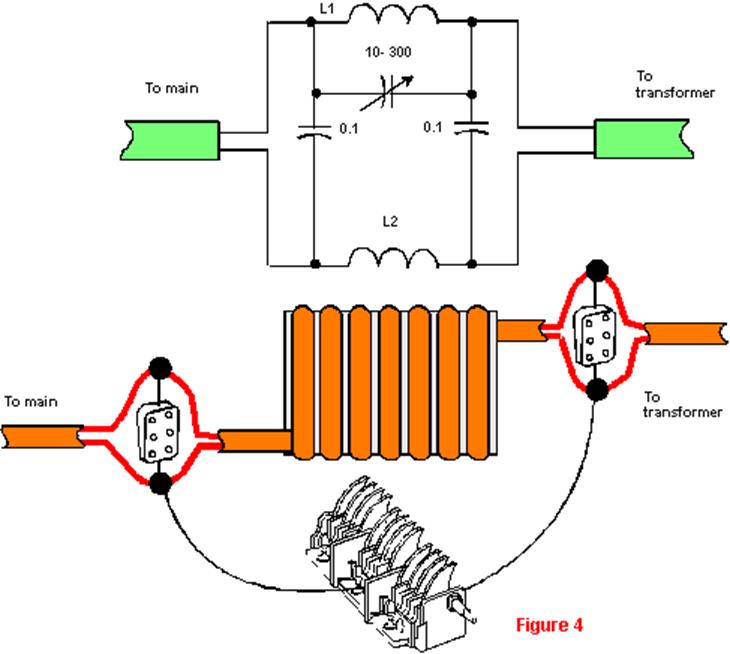

Retuning symmetrical RF filter
